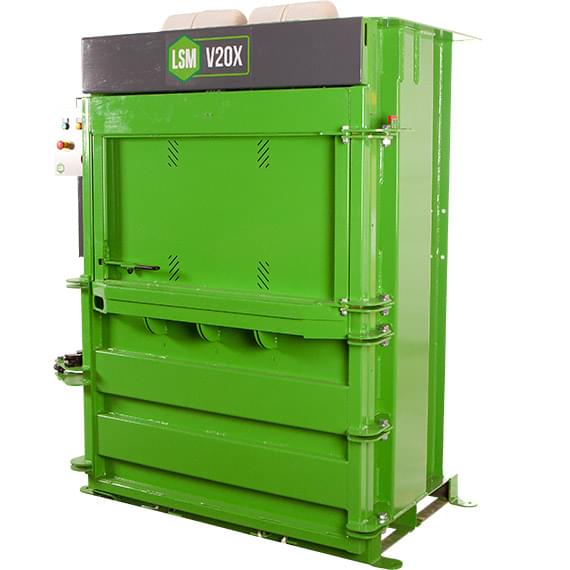

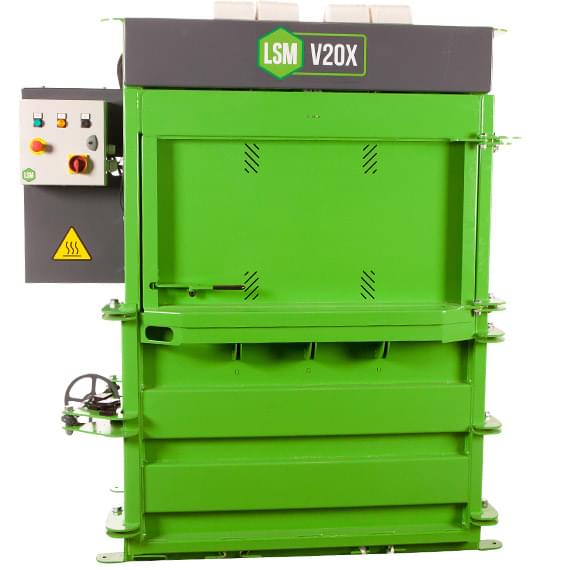

V20X Low-Liner Cross-Ram Baler

Designed with a low overall height and an incredibly powerful cross-ram press, the V20X is an ideal solution for medium-volume users with access and ceiling height issues. With a pressing force of up to 25 tonnes, the V20X can efficiently bale cardboard, plastic, paper, textile and food waste in a compact space.

Features

V20X Cross Ram Baler low and narrow

Low and narrow for use in areas with 2-metre ceilings and 1-metre wide doorways

V20X easy installation

Easy installation offers ‘plug-and-play’ capability

cross ram and long stroke cylinder

Cross ram and long-stroke cylinder for optimum compression in a small space

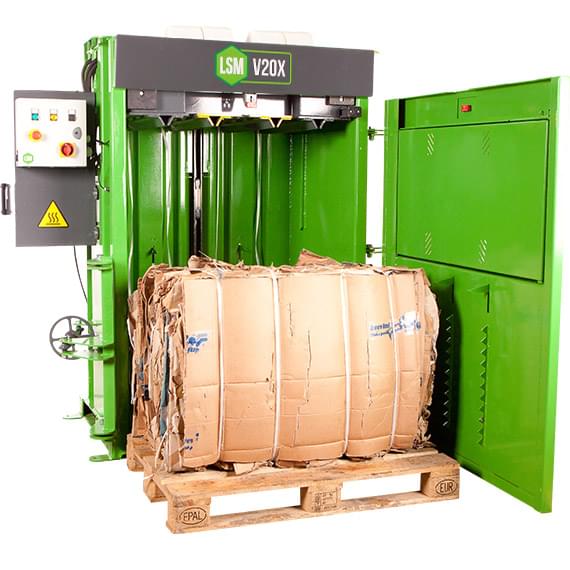

250 kg cardboard bale

High compaction ratio creates ideal 250 kg + bales

heavy duty door clamp

Heavy duty door clamp

bale full indicator

“Bale Full” indicator light helps ensure safe operation at multi-user sites

Low power consumption yet powerful compaction

Specifications

  • Bale size: 800mm H (variable) x 1100mm W x 750mm D
  • Bale weight: 200–300 kg
  • Cycle time: 35 Seconds
  • Compaction force: up to 25 tonnes
  • Dimensions: 1880mm H x 1695mm W x 865mm D
  • Fill opening: 1100mm W x 625mm H
  • Integrated bale kicker
  • Machine weight: 965 kg
  • Power: 3 Phase 380/400 volt. 3 kW motor
  • Noise level: 74 dB
  • EN 16,500 Compliant
  • IP54 Standards
  • E Power Standards
  • PLC type controller with bale full light and auto cycle

Options

  • Marine specification
  • Single phase 220V 50Hz 2 kW motor
  • 3 Phase 220 V
  • Electronic weighing system
  • Annual service contract
  • Galvanised
  • Automatic opening guillotine door
  • Drop down front door
